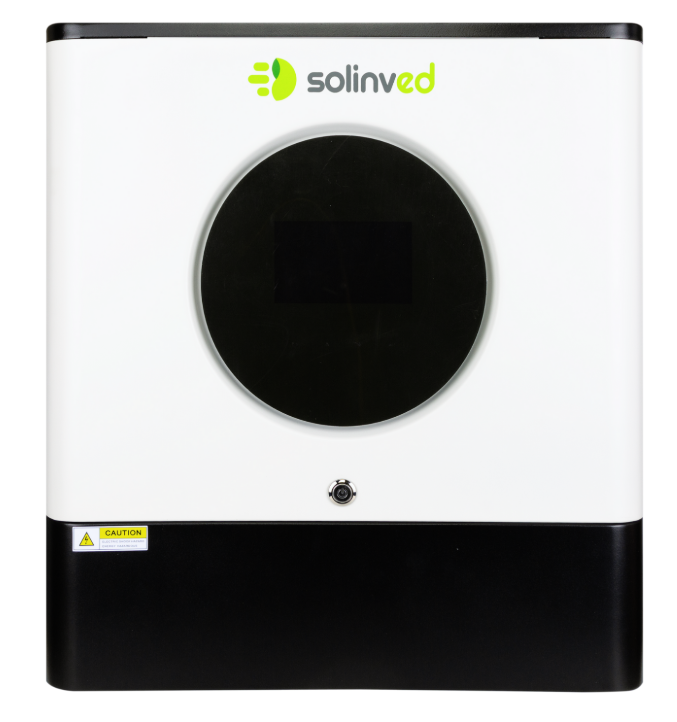

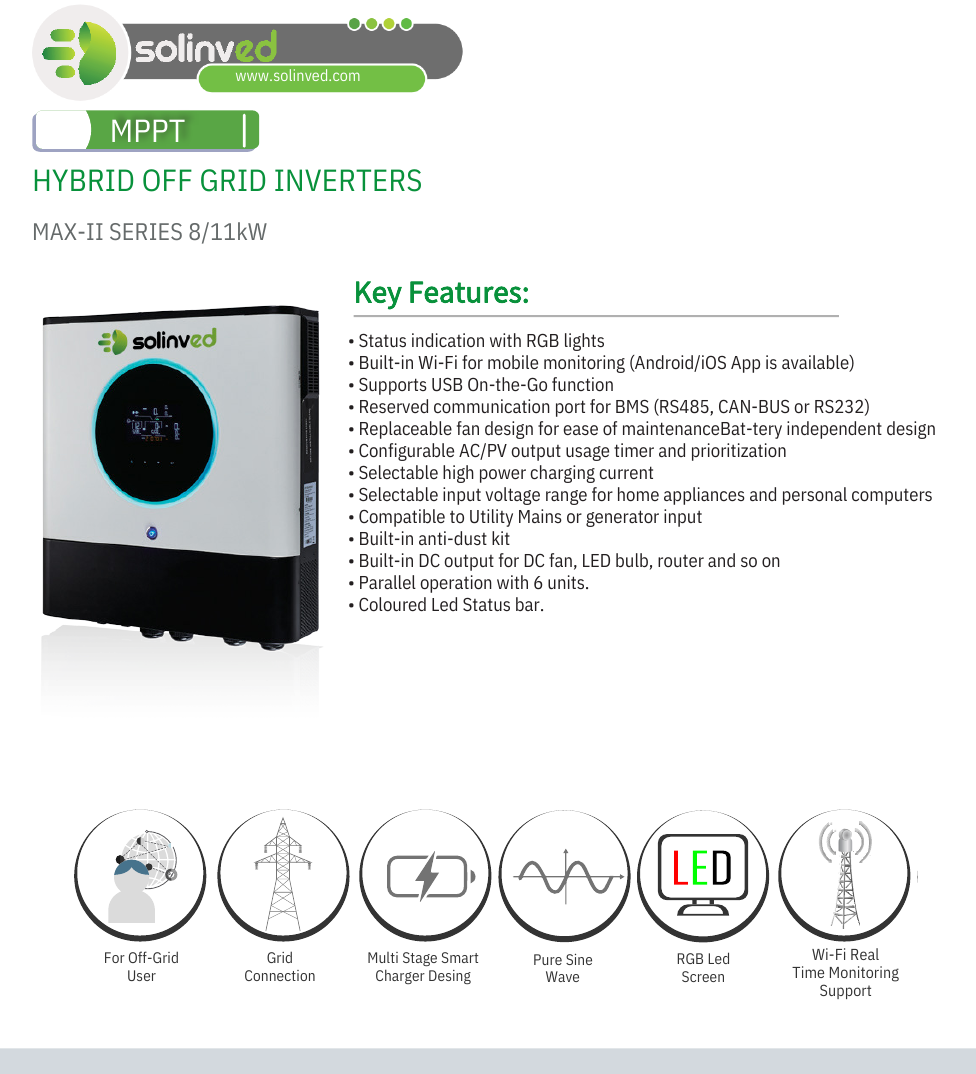

Solinved 8 kW Max-II Serisi MPPT Off Grid İnvertör
Solinved 8 kW Max-II Serisi MPPT Off Grid İnvertör
Normal fiyat
71,687.00TL
Normal fiyat
İndirimli fiyat
71,687.00TL
Birim fiyat
/
/
Vergiler dahil.
Teslim alım stok durumu yüklenemedi

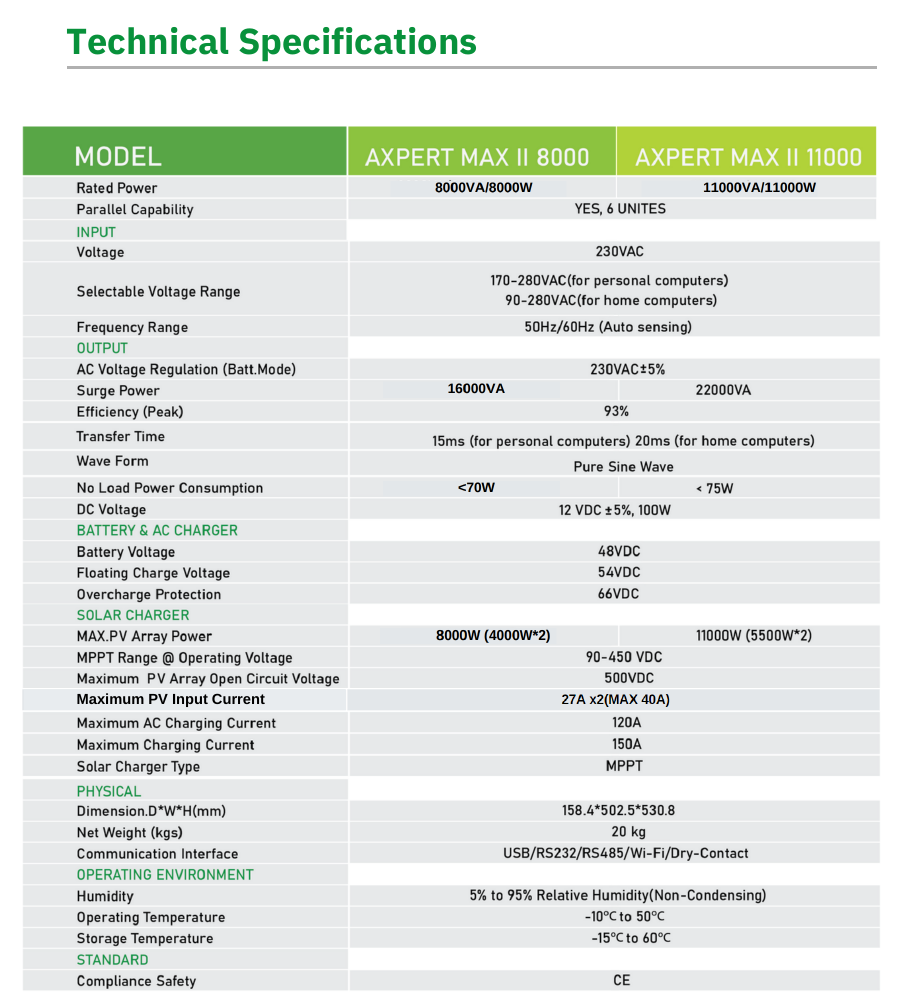

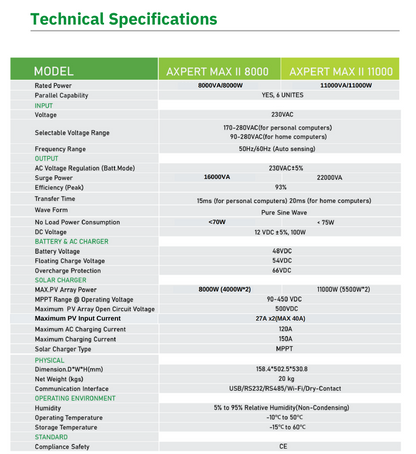

| Özellik | AXPERT MAX II 8000 | AXPERT MAX II 11000 |
|---|---|---|
| Rated Power | 8000VA / 8000W | 11000VA / 11000W |
| Parallel Capability | YES, 6 UNITS | |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (for personal computers) / 90-280VAC (for home computers) | |
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ±5% | |
| Surge Power | 16000VA | 22000VA |
| Efficiency (Peak) | 93% | |
| Transfer Time | 15ms (for personal computers) / 20ms (for home computers) | |
| Wave Form | Pure Sine Wave | |
| No Load Power Consumption | <70W | <75W |
| DC Voltage | 12 VDC ±5%, 100W | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 48VDC | |
| Floating Charge Voltage | 54VDC | |
| Overcharge Protection | 66VDC | |
| SOLAR CHARGER | ||
| MAX. PV Array Power | 8000W (4000W * 2) | 11000W (5500W * 2) |
| MPPT Range @ Operating Voltage | 90 - 450VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum PV Input Current | 27A x2 (MAX 40A) | 27A x2 (MAX 40A) |
| Maximum AC Charging Current | 120A | |
| Maximum Charging Current | 150A | |
| Solar Charger Type | MPPT | |
| PHYSICAL | ||
| Dimension (D * W * H) (mm) | 158.4 * 502.5 * 530.8 | |
| Net Weight (kgs) | 20 kg | |
| Communication Interface | USB / RS232 / RS485 / Wi-Fi / Dry-Contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| STANDARD | ||
| Compliance Safety | CE | |
