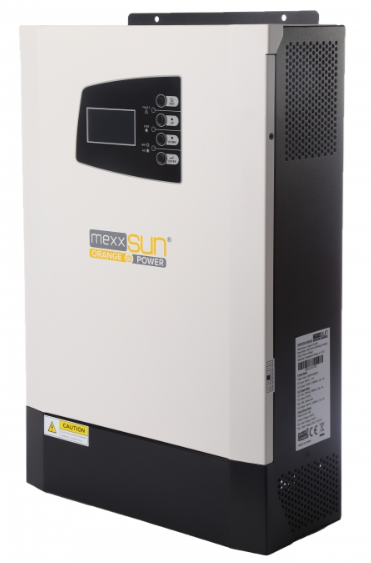

MEXXSUN Tam Sinüs Akıllı 48V 5000W (Axpert KS-5000)
MEXXSUN Tam Sinüs Akıllı 48V 5000W (Axpert KS-5000)
Normal fiyat
32,433.00TL
Normal fiyat
975.00TL
İndirimli fiyat
32,433.00TL
Birim fiyat
/
/
Vergiler dahil.
Teslim alım stok durumu yüklenemedi
| Özellik | KS-5000 |
|---|---|
| Rated Power | 5000VA / 5000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 10000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 60 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 105 VDC |
| Maximum PV Array Power | 2400 W |
| Standby Power Consumption | 2 W |
| Maximum Solar Charge Current | 50 A |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 110 A |
| PHYSICAL | |
| Dimensions (D x W x H) (mm) | 155 x 295 x 455 |
| Net Weight (kg) | 9.8 kg |
| Communication Interface | USB/RS232 |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
