Deye 60 kw trifaze ongrid inverter
Deye 60 kw trifaze ongrid inverter
Normal fiyat
124,944.00TL
Normal fiyat
İndirimli fiyat
124,944.00TL
Birim fiyat
/
/
Vergiler dahil.
Teslim alım stok durumu yüklenemedi
Ürün kullanım kılavuzu için tıklayınız

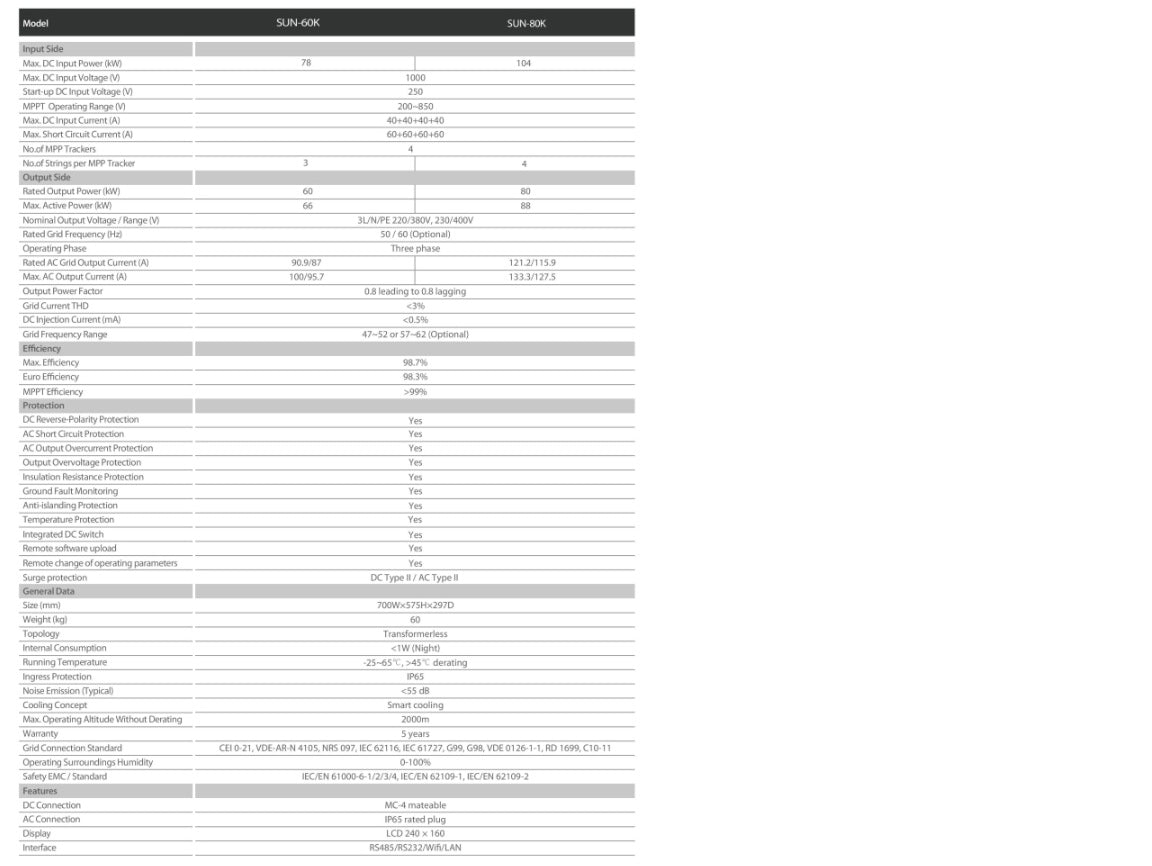

| Model | SUN-60K | SUN-80K |
|---|---|---|
| Input Side | ||
| Max. DC Input Power (kW) | 78 | 104 |
| Max. DC Input Voltage (V) | 1000 | 1000 |
| Start-up DC Input Voltage (V) | 250 | 250 |
| MPPT Operating Range (V) | 200-850 | 200-850 |
| Max. DC Input Current (A) | 40+40+40+40 | 40+40+40+40 |
| Max. Short Circuit Current (A) | 60+60+60+60 | 60+60+60+60 |
| No. of MPPT Trackers | 3 | 4 |
| No. of Strings per MPPT Tracker | 3 | 3 |
| Output Side | ||
| Rated Output Power (kW) | 60 | 80 |
| Max. AC Output Power (kW) | 66 | 88 |
| Nominal Output Voltage / Range (V) | 3L/N/PE 220/380V, 230/400V | 3L/N/PE 220/380V, 230/400V |
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) | 50 / 60 (Optional) |
| Operating Phase | Three phase | Three phase |
| Rated AC Grid Output Current (A) | 90.9/87 | 121.2/115.9 |
| Max. AC Output Current (A) | 100/95.7 | 133.3/127.5 |
| Output Power Factor | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Grid Current THD | <3% | <3% |
| DC Injection Current (mA) | <0.5% | <0.5% |
| Grid Frequency Range | 47-52 or 57-62 (Optional) | 47-52 or 57-62 (Optional) |
| Efficiency | ||
| Max. Efficiency | 98.7% | 98.7% |
| Euro Efficiency | 98% | 98% |
| MPPT Efficiency | >99% | >99% |
| Protection | ||
| DC Reverse Polarity Protection | Yes | Yes |
| AC Short Circuit Protection | Yes | Yes |
| AC Output Overcurrent Protection | Yes | Yes |
| Output Overvoltage Protection | Yes | Yes |
| Insulation Resistance Protection | Yes | Yes |
| Ground Fault Monitoring | Yes | Yes |
| Anti-islanding Protection | Yes | Yes |
| Temperature Protection | Yes | Yes |
| Integrated DC Switch | Yes | Yes |
| Remote software upload | Yes | Yes |
| Remote change of operating parameters | Yes | Yes |
| Surge protection | DC Type II / AC Type II | DC Type II / AC Type II |
| General Data | ||
| Size (mm) | 700W×575H×297D | 700W×575H×297D |
| Weight (kg) | 69 | 69 |
| Topology | Transformerless | Transformerless |
| Internal Consumption | <1W (Night) | <1W (Night) |
| Running Temperature | -25~65°C, +45°C derating | -25~65°C, +45°C derating |
| Noise Emission (Typical) | <55 dB | <55 dB |
| Cooling Concept | Smart cooling | Smart cooling |
| Max. Operating Altitude Without Derating | 2000m | 2000m |
| Warranty | 5 years | 5 years |
| Grid Connection Standard | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| Operating Surroundings Humidity | 0-100% | 0-100% |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Features | ||
| DC Connection | MC-4 mateable | MC-4 mateable |
| AC Connection | IP65 rated plug | IP65 rated plug |
| Display | LCD 240 x 160 | LCD 240 x 160 |
| Interface | RS485/RS232/WiFi/LAN | RS485/RS232/WiFi/LAN |
