Sistem AVM

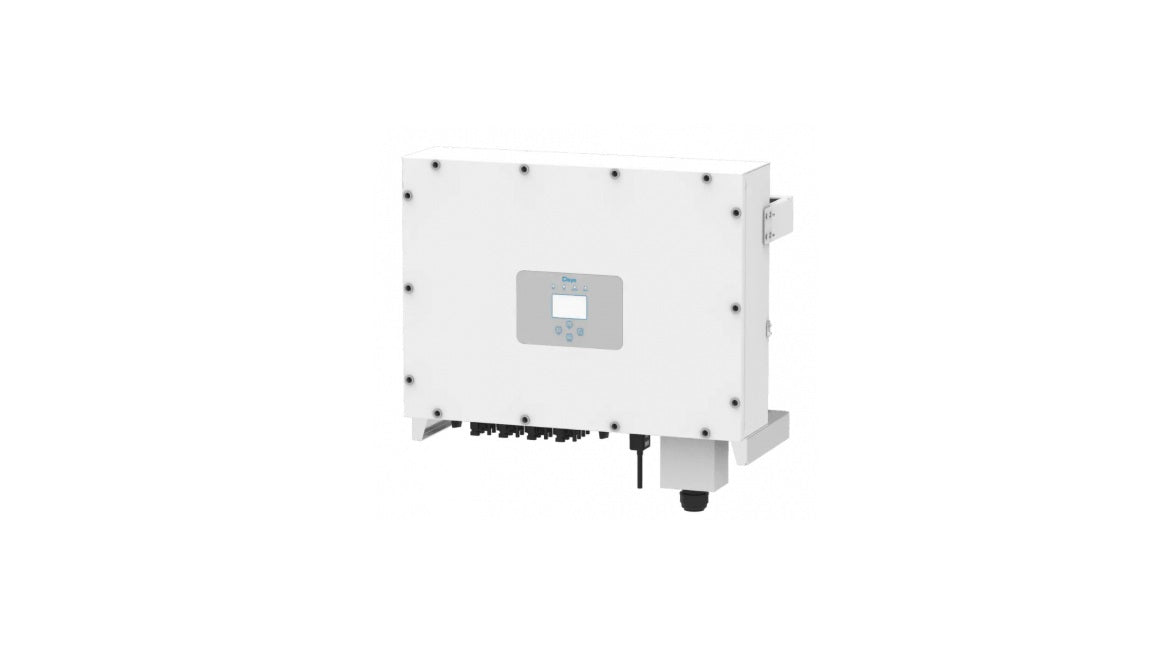

Deye 15 kw trifaze ongrid inverter
Deye 15 kw trifaze ongrid inverter
Normal fiyat
52,364.00TL
Normal fiyat
1,618.00TL
İndirimli fiyat
52,364.00TL
Birim fiyat
/
/
Vergiler dahil.
Teslim alım stok durumu yüklenemedi
Ürün kullanım kılavuzu için : Tıklayınız
| Model | SUN-5K-G05-P1-EU-AM2 |
|---|---|
| PV String Input Data | |
| Max. PV Input Power (kW) | 6.5 |
| Max. PV Input Voltage (V) | 550 |
| Start-up Voltage (V) | 80 |
| MPPT Voltage Range (V) | 70–500 |
| Rated PV Input Voltage (V) | 360 |
| Max. Operating PV Input Current (A) | 18+18 |
| Max. Input Short Circuit Current (A) | 27+27 |
| No. of MPPT Trackers/ No. of Strings per MPPT Tracker | 2/1+1 |
| AC Output Side | |
| Rated AC Output Active Power (kW) | 5 |
| Rated AC Output Apparent Power (kVA) | 5.5 |
| Rated AC Output Current (A) | 22.8/21.8 |
| Max. AC Output Current (A) | 25/24 |
| Rated Output Voltage/Range (V) | 220/230 (0.5Un–1.1Un) |
| Grid Connection Form | LN/PE |
| Rated Output Grid Frequency/Range (Hz) | 50/45–55; 60/55–65 |
| Efficiency | |
| Max. Efficiency | 97.5% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | >99% |
| General Data | |
| Operating Temperature Range (°C) | -25 to +60°C |
| Weight (kg) | 77 |
