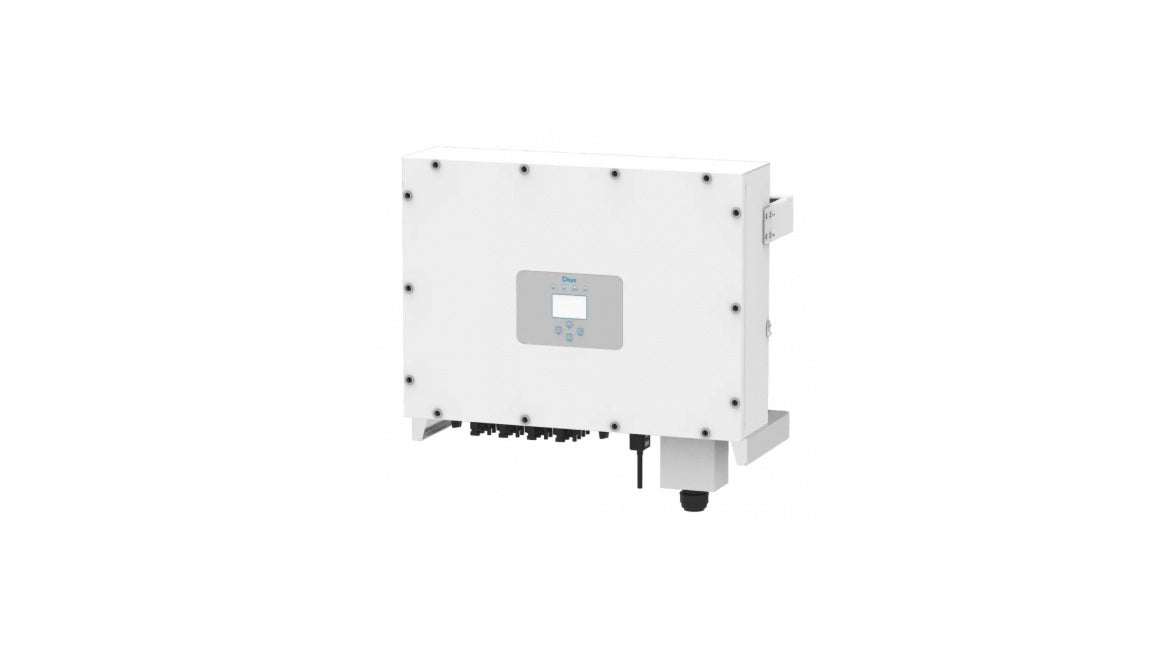

Deye 100 kw trifaze ongrid inverter

Deye 100 kw trifaze ongrid inverter

157,016.00TL
4,801.00TL 157,016.00TL
İndirim Tükendi
Vergiler dahil.

Ürün kullanım kılavuzu için tıklayınız

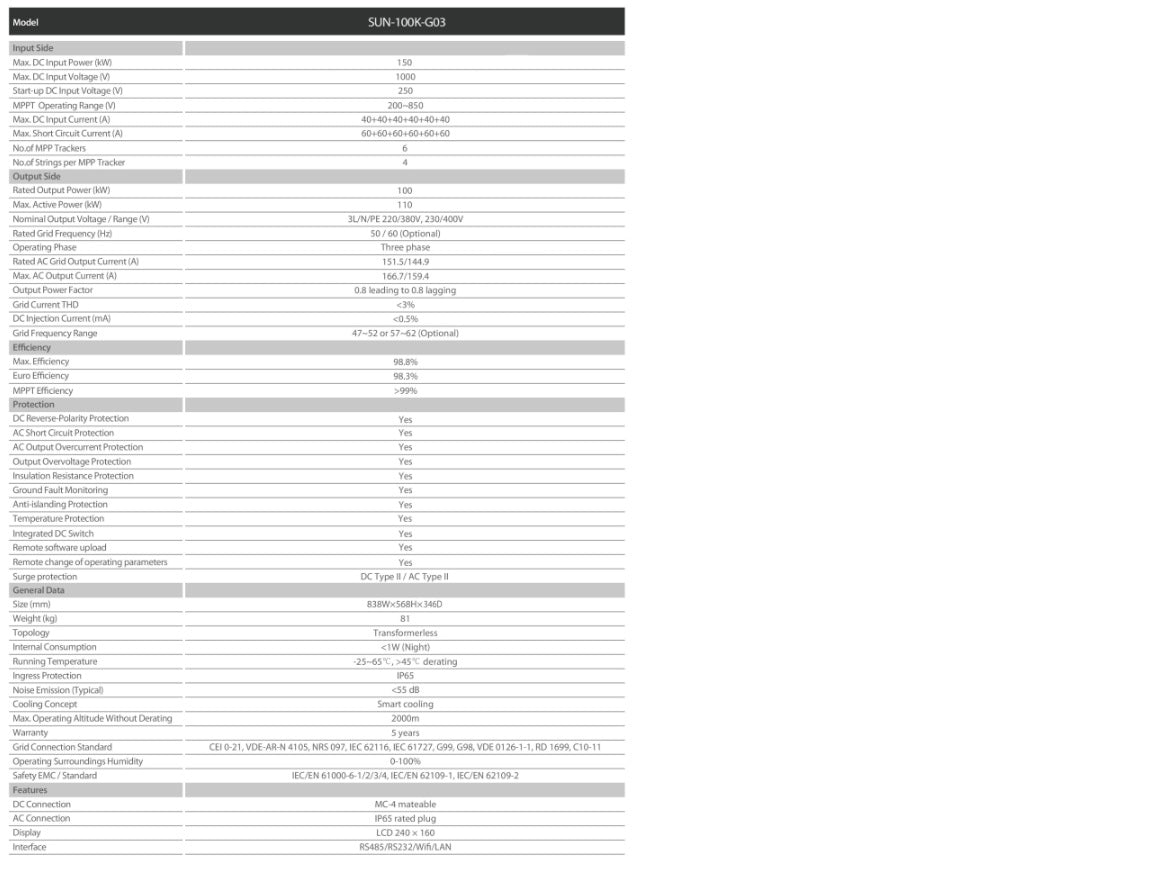

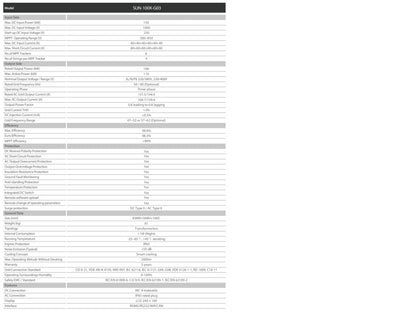

Model SUN-100K-G03
Max. DC Input Power (kW) 150
Max. DC Input Voltage (V) 1000
Start-up DC Input Voltage (V) 250
MPPT Operating Range (V) 200-850
Max. DC Input Current (A) 40+40+40+40+40
No. of MPP Trackers 6
Rated Output Power (kW) 100
Max. Active Power (kW) 110
Nominal Output Voltage (V) 3L/N/PE 230/380V, 230/400V
Rated Grid Frequency (Hz) 50 / 60 (Optional)
Operating Phase Three phase
Rated AC Grid Output Current (A) 115.7/144.9
Max. AC Output Current (A) 167.1
Max. Output Power Factor 0.8 leading to 0.8 lagging
Grid Current THD <3%
DC Injection Current (mA) <0.5%
Grid Frequency Range 47-52 or 57-62 (Optional)
Max. Efficiency 98.8%
Euro Efficiency 98.3%
MPPT Efficiency >99%
DC Reverse-Polarity Protection Yes
AC Short Circuit Protection Yes
AC Output Overcurrent Protection Yes
Output Overvoltage Protection Yes
Insulation Resistance Protection Yes
Ground Fault Monitoring Yes
Anti-Islanding Protection Yes
Temperature Protection Yes
Integrated DC Switch Yes
Remote software upload Yes
Remote change of operating parameters Yes
Surge protection DC Type I / AC Type II
Size (mm) 838W×568H×346D
Weight (kg) 81
Topology Transformerless
Internal Consumption <1W (Night)
Running Temperature -25~65°C, 45°C derating
Ingress Protection IP65
Noise Emission (Typical) <55 dB
Cooling Concept Smart cooling
Max. Operating Altitude Without Derating 2000m
Warranty 5 years
Grid Connection Standard CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Operating Surroundings Humidity 0-100%
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
DC Connection MC-4 mateable
AC Connection IP65 rated plug
Display LCD 240 x 160
Interface RS485/RS232/WiFi/LAN
